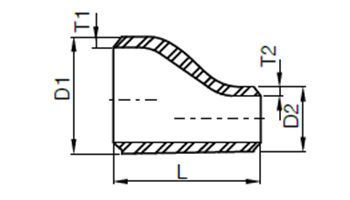

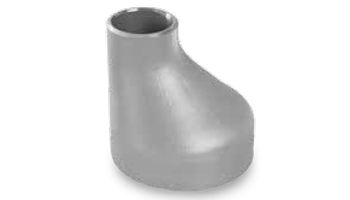

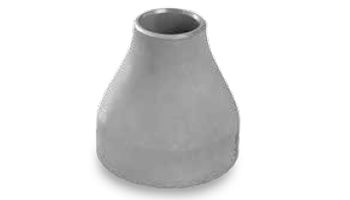

Dış | (D1) | (D2) | Et Kalınlığı/Wall Thickness (T) | Uzunluk | Dış | Ağırlık/Weight (Kg) | |||||||||||
SCH. 10S | SCH. 40S | SCH. 80S | SCH | SCH | SCH | ||||||||||||
(T1) | (T2) | (T1) | (T2) | (T1) | (T2) | ||||||||||||
3/4 | x | 1/2 | 26.67 | 21.34 | 2.11 | 2.11 | 2.87 | 2.77 | 3.91 | 3.73 | 38.10 | 3/4 | x | 1/2 | 0.090 | 0.105 | 0.159 |
1" | x | 1/2 | 33.40 | 21.34 | 2.77 | 2.11 | 3.38 | 2.77 | 4.55 | 3.73 | 50.80 | 1" | x | 1/2 | 0.089 | 0.105 | 0.163 |
1" | x | 3/4 | 33.40 | 26.67 | 2.77 | 2.11 | 3.38 | 2.87 | 4.55 | 3.91 | 50.80 | 1" | x | 3/4" | 0.098 | 0.116 | 0.168 |
1 1/4" | x | 1" | 42.16 | 33.40 | 2.77 | 2.77 | 3.56 | 3.38 | 4.85 | 4.55 | 50.80 | 1 1/4" | x | 1" | 0.125 | 0.157 | 0.245 |
1 1/2" | x | 1/2" | 48.26 | 21.34 | 2.77 | 2.11 | 3.68 | 2.77 | 5.08 | 3.73 | 63.50 | 1 1/2" | x | 1/2" | 0.154 | 0.204 | 0.276 |
1 1/2" | x | 3/4" | 48.26 | 26.67 | 2.77 | 2.11 | 3.68 | 2.87 | 5.08 | 3.91 | 63.50 | 1 1/2" | x | 3/4" | 0.156 | 0.201 | 0.294 |
1 1/2" | x | 1" | 48.26 | 33.40 | 2.77 | 2.77 | 3.68 | 3.38 | 5.08 | 4.55 | 63.50 | 1 1/2" | x | 1" | 0.170 | 0.219 | 0.308 |
1 1/2" | x | 1 1/4" | 48.26 | 42.16 | 2.77 | 2.77 | 3.68 | 3.56 | 5.08 | 4.85 | 63.50 | 1 1/2" | x | 1 1/4" | 0.195 | 0.263 | 0.331 |
2" | x | 3/4" | 60.32 | 26.67 | 2.77 | 2.11 | 3.91 | 2.87 | 5.54 | 3.91 | 76.20 | 2" | x | 3/4" | 0.214 | 0.298 | 0.458 |
2" | x | 1" | 60.32 | 33.40 | 2.77 | 2.77 | 3.91 | 3.38 | 5.54 | 4.55 | 76.20 | 2" | x | 1" | 0.237 | 0.322 | 0.458 |
2" | x | 1 1/4" | 60.32 | 42.16 | 2.77 | 2.77 | 3.91 | 3.56 | 5.54 | 4.85 | 76.20 | 2" | x | 1 1/4" | 0.258 | 0.352 | 0.525 |
2" | x | 1 1/2" | 60.32 | 48.26 | 2.77 | 2.77 | 3.91 | 3.68 | 5.54 | 5.08 | 76.20 | 2" | x | 1 1/2" | 0.273 | 0.372 | 0.544 |
2 1/2" | x | 1" | 73.02 | 33.40 | 3.05 | 2.77 | 5.16 | 3.38 | 7.01 | 4.55 | 88.90 | 2 1/2 | x | 1" | 0.349 | 0.793 | 0.793 |
2 1/2" | x | 1 1/4" | 73.02 | 42.16 | 3.05 | 2.77 | 5.16 | 3.56 | 7.01 | 4.85 | 88.90 | 2 1/2" | x | 1 1/4" | 0.394 | 0.670 | 0.825 |
2 1/2" | x | 1 1/2" | 73.02 | 48.26 | 3.05 | 2.77 | 5.16 | 3.68 | 7.01 | 5.08 | 88.90 | 2 1/2" | x | 1 1/2" | 0.396 | 0.611 | 0.856 |
2 1/2" | x | 2" | 73.02 | 60.32 | 3.05 | 2.77 | 5.16 | 3.91 | 7.01 | 5.54 | 88.90 | 2 1/2" | x | 2" | 0.432 | 0.724 | 0.938 |
3" | x | 1" | 88.90 | 33.40 | 3.05 | 2.77 | 5.49 | 3.38 | 7.62 | 4.55 | 88.90 | 3" | x | 1" | 0.408 | 0.716 | 0.888 |
Dış | (D1) | (D2) | Et Kalınlığı/Wall Thickness (T) | Uzunluk | Dış | Ağırlık/Weight (Kg) | |||||||||||
SCH. 10S | SCH. 40S | SCH. 80S | SCH | SCH | SCH | ||||||||||||
(T1) | (T2) | (T1) | (T2) | (T1) | (T2) | ||||||||||||
3" | x | 1 1/4" | 88.80 | 42.16 | 3.05 | 2.77 | 5.49 | 3.56 | 7.62 | 4.85 | 88.90 | 3" | x | 1 1/4" | 0.430 | 0.775 | 1.037 |
3" | x | 1 1/2" | 88.90 | 48.26 | 3.05 | 2.77 | 5.49 | 3.68 | 7.62 | 5.08 | 88.90 | 3" | x | 1 1/2" | 0.444 | 0.783 | 1.105 |
3" | x | 2" | 88.90 | 60.32 | 3.05 | 2.77 | 5.49 | 3.91 | 7.62 | 5.54 | 88.90 | 3" | x | 2" | 0.478 | 0.846 | 1.178 |
3" | x | 2 1/2" | 88.90 | 73.02 | 3.05 | 3.05 | 5.49 | 5.16 | 7.62 | 7.01 | 88.90 | 3" | x | 2 1/2" | 0.548 | 0.983 | 1.291 |
4" | x | 1 1/2" | 114.30 | 48.26 | 3.05 | 2.77 | 6.02 | 3.68 | 8.56 | 5.08 | 101.60 | 4" | x | 1 1/2" | 0.630 | 1.241 | 1.730 |
4" | x | 2" | 114.30 | 60.32 | 3.05 | 2.77 | 6.02 | 3.91 | 8.56 | 5.54 | 101.60 | 4" | x | 2" | 0.656 | 1.270 | 1.780 |
4" | x | 2 1/2" | 114.30 | 73.02 | 3.05 | 3.05 | 6.02 | 5.16 | 8.56 | 7.01 | 101.60 | 4" | x | 2 1/2" | 0.706 | 1.370 | 2.007 |
4" | x | 3" | 114.30 | 88.90 | 3.05 | 3.05 | 6.02 | 5.49 | 8.56 | 7.62 | 101.60 | 4" | x | 3" | 0.748 | 1.450 | 2.129 |
5" | x | 3" | 141.30 | 88.90 | 3.40 | 3.05 | 6.55 | 5.49 | 9.53 | 7.62 | 127.00 | 5" | x | 3" | 1.200 | 2.270 | 3.547 |
5" | x | 4" | 141.30 | 114.30 | 3.40 | 3.05 | 6.55 | 6.02 | 9.53 | 8.56 | 127.00 | 5" | x | 4" | 1.320 | 2.500 | 3.769 |
6" | x | 2 1/2" | 168.27 | 73.02 | 3.40 | 3.05 | 7.11 | 5.16 | 10.97 | 7.01 | 139.70 | 6" | x | 2 1/2" | 1.350 | 2.740 | 4.510 |
6" | x | 3" | 168.27 | 88.90 | 3.40 | 3.05 | 7.11 | 5.49 | 10.97 | 7.62 | 139.70 | 6" | x | 3" | 1.500 | 3.040 | 5.030 |
6" | x | 4" | 168.27 | 114.30 | 3.40 | 3.05 | 7.11 | 6.02 | 10.97 | 8.56 | 139.70 | 6" | x | 4" | 1.620 | 3.300 | 5.440 |
6" | x | 5" | 168.27 | 141.30 | 3.40 | 3.05 | 7.11 | 6.55 | 10.97 | 9.53 | 139.70 | 6" | x | 5" | 1.750 | 3.570 | 5.710 |
8" | x | 4" | 219.08 | 114.30 | 3.76 | 3.05 | 8.18 | 6.02 | 12.70 | 8.56 | 152.40 | 8" | x | 4" | 2.560 | 5.10 | 8.43 |
8" | x | 5" | 219.08 | 141.30 | 3.76 | 3.40 | 8.18 | 6.55 | 12.70 | 9.53 | 152.40 | 8" | x | 5" | 2.700 | 5.40 | 8.83 |
8" | x | 6" | 219.08 | 168.27 | 3.76 | 3.40 | 8.18 | 7.11 | 12.70 | 10.97 | 152.40 | 8" | x | 6" | 2.850 | 5.71 | 9.24 |
10" | x | 5" | 273.05 | 141.30 | 4.19 | 3.40 | 9.27 | 6.55 | 12.70 | 9.53 | 177.80 | 10" | x | 5" | 3.300 | 8.21 | 13.00 |
10" | x | 6" | 273.05 | 168.27 | 4.19 | 3.40 | 9.27 | 7.11 | 12.70 | 10.97 | 177.80 | 10" | x | 6" | 3.870 | 8.78 | 13.50 |
10" | x | 8" | 273.05 | 219.08 | 4.19 | 3.76 | 9.27 | 8.18 | 12.70 | 12.70 | 177.80 | 10" | x | 8" | 4.210 | 9.58 | 14.22 |
12" | x | 6" | 323.85 | 168.27 | 4.57 | 3.40 | 9.53 | 7.11 | 12.70 | 10.97 | 203.20 | 12" | x | 6" | 5.730 | 12.40 | 18.39 |
12" | x | 8" | 323.85 | 219.08 | 4.57 | 3.76 | 9.53 | 8.18 | 12.70 | 12.70 | 203.20 | 12" | x | 8" | 6.110 | 13.70 | 19.07 |
12" | x | 10" | 323.85 | 273.05 | 4.57 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 203.20 | 12" | x | 10" | 6.550 | 14.70 | 19.48 |
14" | x | 12" | 355.60 | 323.85 | 4.78 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 330.20 | 14" | x | 12" | 14.27 | 28.55 | 37.18 |
14" | x | 10" | 355.60 | 273.05 | 4.78 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 330.20 | 14" | x | 10" | 13.21 | 26.41 | 34.40 |
14" | x | 8" | 355.60 | 219.08 | 4.78 | 3.76 | 9.53 | 8.18 | 12.70 | 12.70 | 330.20 | 14" | x | 8" | 12.07 | 24.15 | 31.44 |
14" | x | 6" | 355.60 | 168.27 | 4.78 | 3.40 | 9.53 | 7.11 | 12.70 | 10.97 | 330.20 | 14" | x | 6" | 11.01 | 22.01 | 28.66 |
16" | x | 14" | 406.40 | 355.60 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 355.60 | 16" | x | 14" | 17.24 | 34.48 | 44.90 |
16" | x | 12" | 406.40 | 323.85 | 4.78 | 4.57 | 9.53 | 9.53 | 12.70 | 12.70 | 355.60 | 16" | x | 12" | 16.52 | 33.05 | 43.03 |
16" | x | 10" | 406.40 | 273.05 | 4.78 | 4.19 | 9.53 | 9.27 | 12.70 | 12.70 | 355.60 | 16" | x | 10" | 15.37 | 30.75 | 40.04 |
16" | x | 8" | 406.40 | 219.08 | 4.78 | 3.76 | 9.53 | 8.18 | 12.70 | 12.70 | 355.60 | 16" | x | 8" | 14.15 | 28.30 | 36.86 |
18" | x | 16" | 457.20 | 406.40 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 381.00 | 18" | x | 16" | 20.94 | 41.87 | 54.52 |
18" | x | 14" | 457.20 | 355.60 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 381.00 | 18" | x | 14" | 19.71 | 39.41 | 51.32 |
18" | x | 12" | 457.20 | 323.85 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 381.00 | 18" | x | 12" | 18.94 | 37.87 | 49.32 |
18" | x | 10" | 457.20 | 273.05 | 4.78 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 381.00 | 18" | x | 10" | 17.70 | 35.41 | 46.11 |
20" | x | 18" | 508.00 | 457.20 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 20" | x | 18" | 38.01 | 62.40 | 81.25 |
20" | x | 16" | 508.00 | 406.40 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 20" | x | 16" | 36.01 | 59.11 | 76.97 |
20" | x | 14" | 508.00 | 355.60 | 5.54 | 4.78 | 9.53 | 12.70 | 12.70 | 12.70 | 508.00 | 20" | x | 14" | 33.98 | 55.83 | 72.70 |
20" | x | 12" | 508.00 | 323.85 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 20" | x | 12" | 32.76 | 53.78 | 70.02 |
22" | x | 20" | 558.80 | 508.00 | 5.54 | 5.54 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 22" | x | 20" | 42.01 | 68.96 | 89.80 |
22" | x | 18" | 558.80 | 457.20 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 22" | x | 18" | 40.01 | 65.68 | 85.53 |
22" | x | 16" | 558.80 | 406.40 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 22" | x | 16" | 38.01 | 62.40 | 81.25 |
22" | x | 14" | 558.80 | 355.60 | 5.54 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 22" | x | 14" | 36.01 | 59.08 | 76.97 |
24" | x | 22" | 609.60 | 558.80 | 6.35 | 5.54 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 24" | x | 22" | 52.91 | 75.53 | 98.36 |
24" | x | 20" | 609.60 | 508.00 | 6.35 | 5.54 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 24" | x | 20" | 50.61 | 72.25 | 94.08 |
24" | x | 18" | 609.60 | 457.20 | 6.35 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 24" | x | 18" | 48.31 | 68.96 | 89.80 |
24" | x | 16" | 609.60 | 406.40 | 6.35 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 24" | x | 16" | 46.01 | 65.68 | 85.53 |
24" | x | 14" | 609.60 | 355.60 | 6.35 | 4.78 | 9.53 | 9.53 | 12.70 | 12.70 | 508.00 | 24" | x | 14" | 43.71 | 62.40 | 81.25 |
